| Feature | Specification |
|---|---|
| Brand & Model | XENTHRA XN-H81M-VH |
| Form Factor | Micro-ATX (190 x 170 mm), 4-Layer PCB Structure |
| Chipset | Intel® B85 Express Chipset |
| OS Support | Windows® 7 / 10 / 11 (32-bit & 64-bit) |
| CPU Socket | LGA 1150 |
| Supported Processors | Intel® 4th Gen Core™ i7/i5/i3, Pentium®, Celeron®, Xeon® E3-1200 v3 series |
| Validated Processors | G1820, i3-4330, i5-4590S, i7-4770, Xeon® E3-1230 v3 |
| Memory Slots & Type | 2x DDR3 DIMM (240-pin) |
| Memory Architecture | Dual-Channel DDR3 |
| Memory Clock Speeds | 1600 / 1333 / 1066 MHz |
| Max Memory Capacity | Up to 16 GB (8 GB per slot) |
| M.2 Slot | 1x M.2 (NVMe PCIe 2.0 x4 & SATA 3.0 NGFF, jumper selectable) |
| SATA Ports | 1x SATA 3.0 (6 Gbps), 2x SATA 2.0 (3 Gbps) |
| PCI Express Slots | 1x PCIe 2.0 x16, 1x PCIe 2.0 x1 |
| Wireless Module Slot | 1x M.2 Wi-Fi / WLAN Slot |
| Display Outputs | 1x HDMI, 1x VGA (D-Sub) |
| USB Ports (Rear) | 2x USB 3.0, 4x USB 2.0 |
| Ethernet | 1x RJ45 Gigabit LAN (Realtek® Gigabit Controller) |
| Audio Ports | 3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In) |
| Front USB Headers | 2x FUSB 2.0 (supports 4 additional USB 2.0 front ports) |
| Fan Connectors | 1x 4-Pin CPU, 1x 3-Pin System (SYS) |
| Security & Diagnostics | 1x 14-Pin TPM 2.0, 1x 2×5-Pin Diagnostic Card, 1x JCMOS Header |
| Panel Headers | 1x FPANEL Front Panel, 1x Front Panel Audio Header |
| Power Input | 24-Pin ATX Main + 4-Pin 12V CPU |
| Audio Codec | Realtek® High-Definition Audio Controller |
| Power Dissipation | Standby: 20W – 45W |

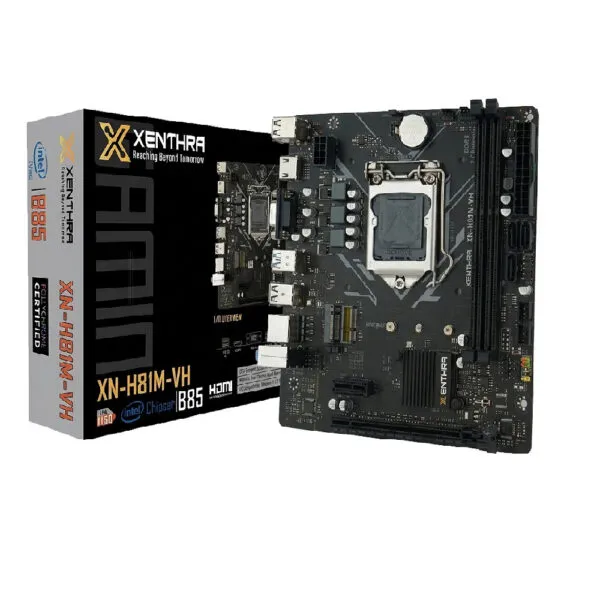

XENTHRA XN-H81M-VH Intel 4th Gen High-Performance Mirco-ATX Motherboard
৳ 4,500Current price is: ৳ 4,500. Original price was: ৳ 4,850.
CPU: Intel 4th Gen
Platform: Intel Platform
Chipset: B85
Form Factor: Micro-ATX (180 mm x 216 mm)
Memory: 2 x 8GB (16GB)
OS Compatibility: Compatible with Windows 10/11 and Linux
