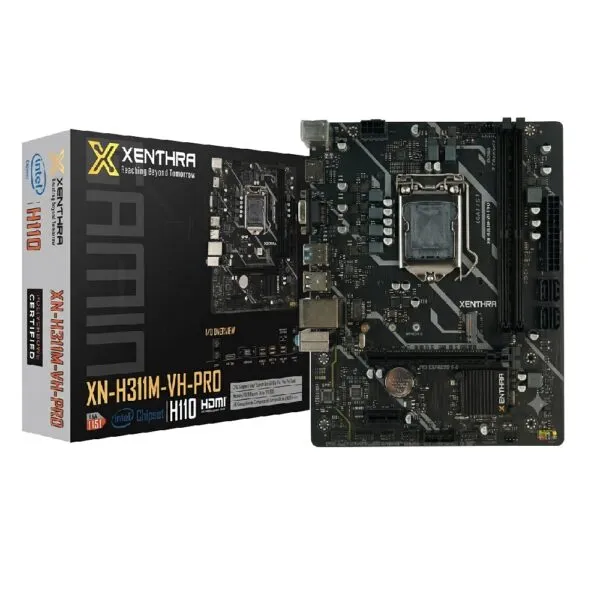

XENTHRA XN-H311M-VH-PRO Intel 6th/7th/8th/9th Gen High-Performance Mirco-ATX Motherboard
৳ 6,500Current price is: ৳ 6,500. Original price was: ৳ 6,800.
CPU: Intel 6th to 9th Gen
Platform: Intel Platform
Chipset: H110
Form Factor: Micro-ATX (180 mm x 216 mm)
Memory: 2 x 32GB (64GB)
OS Compatibility: Compatible with Windows 10/11 and Linux
Call For Price: +8801883-635202
Add to cart
Buy Now
| Feature | Specification |
|---|---|
| Brand & Model | XENTHRA XN-H311M-VH-PRO |
| Form Factor | Micro-ATX (190 x 225 mm / 180 x 216 mm), 4-Layer PCB |
| Chipset | Intel® H110 Express Chipset |
| OS Compatibility | Windows® 10 / 11, Linux |
| CPU Socket | LGA 1151 |
| Supported Processors | Intel® 6th, 7th, 8th, 9th Gen Core™, Pentium®, Celeron® |
| Sample CPUs | i3-6100, i3-8100, i5-8400, i5-9400, i7-9700, i7-9700K, etc. |
| Memory Slots & Type | 2x DDR4 DIMM |
| Memory Channel | Dual-Channel DDR4 |
| Max Memory Speed | Up to DDR4 2666 MHz |
| Max Memory Capacity | Up to 64 GB (2x 32GB or 16GB per slot) |
| M.2 Slot | 1x M.2 (NVMe PCIe 2.0 x4 mode) |
| SATA Ports | 4x SATA 3.0 (6 Gbps) |
| PCI Express Slots | 1x PCIe 3.0 x16, 1x PCIe 2.0 x1 |
| Display Outputs | 1x HDMI, 1x VGA (D-Sub) |
| Legacy Ports | 1x PS/2 Keyboard/Mouse Combo |
| USB Ports (Rear) | 2x USB 3.0, 4x USB 2.0 |
| Ethernet | 1x RJ45 (Realtek® Gigabit LAN) |
| Audio Ports | 3x Audio Jacks (Line Out, Mic In, Line In) |
| USB Headers (Internal) | 1x USB 3.0 (for 2 ports), 1x USB 2.0 (for 2 ports) |
| Serial Port Header | 1x COM (RS232 mode) |
| Fan Connectors | 1x 4-Pin CPU, 1x 4-Pin SYS, 1x 3-Pin SYS |
| Security & Diagnostics | 1x TPM 2.0, 2x 5-Pin Diagnostic Card, 1x JBAT Jumper Cap |
| Panel Headers | 1x Front Panel, 1x Audio Built-in Plug |
| Power Input | 24-Pin ATX Main + 8-Pin 12V CPU |
| Audio Controller | Realtek® High-Definition Audio Chip |
| Power Dissipation | Standby: 20W – 45W |
| Operating Temperature | -10°C ~ 60°C |
| Operating Humidity | 10% ~ 90% (Non-condensing) |
| Storage Temperature | -25°C ~ 70°C |
| Brand |
|---|
