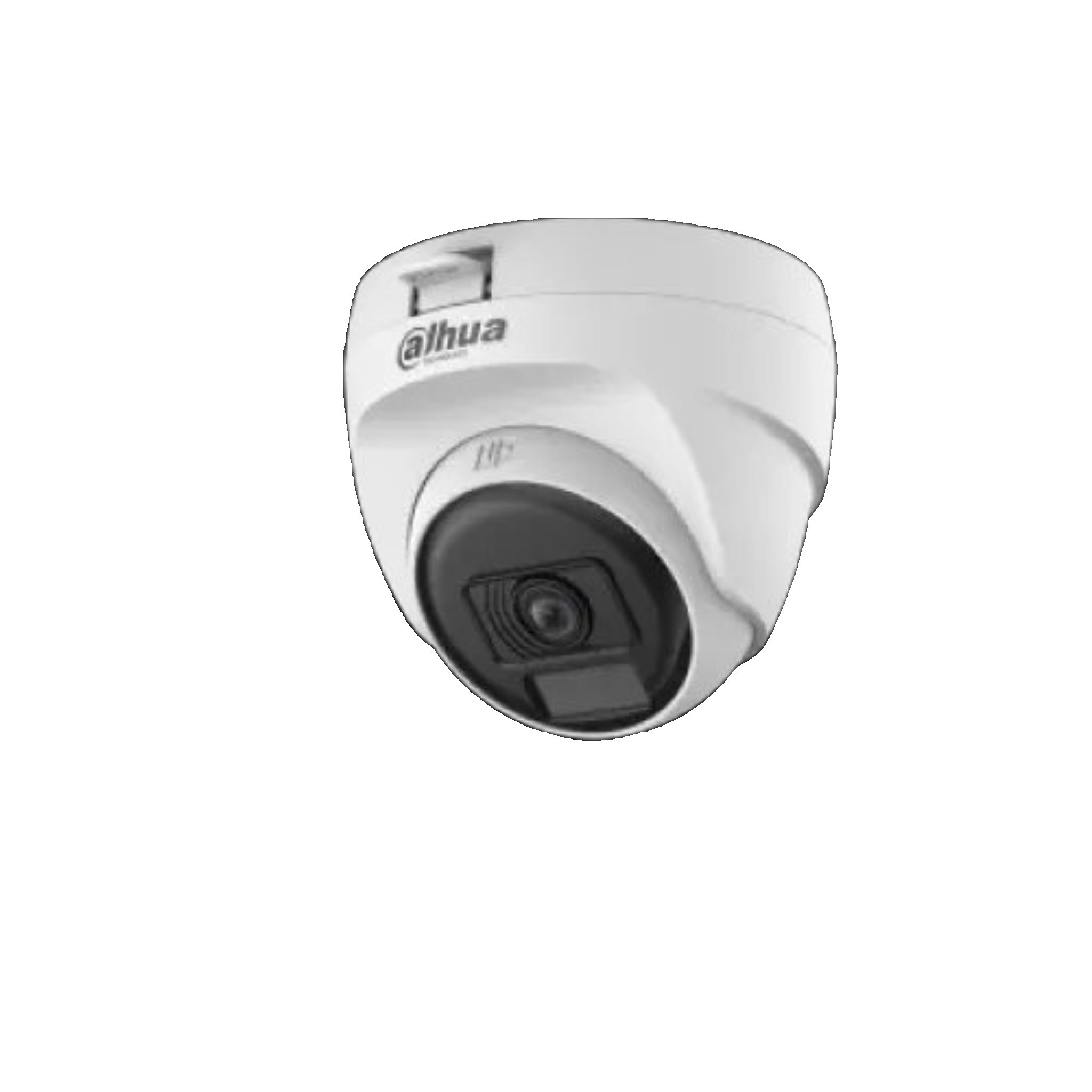

**General Information**
**Casing**
Material: Plastic
**Dimensions**
Diameter: 85.0 mm × Height: 77.1 mm (3.35 inches × 3.04 inches)

**Weight**
0.12 kg (0.26 lb)

**Movement**
– Pan: 0° to 360°
– Tilt: 0° to 90°
– Rotation: 0° to 360°

**Operating Conditions**
– Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
– Humidity: Less than 95% (non-condensing)

**Storage Conditions**
– Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
– Humidity: Less than 95% (non-condensing)

**Power**
– Supply: 12 VDC ± 30%
– Consumption: Maximum 2.1 W (with LED on at 12 VDC)

**Camera Specifications**
– Image Sensor: 2 MP CMOS
– Scanning System: Progressive
– Electronic Shutter Speed:
– PAL: 1/25 s to 1/100000 s
– NTSC: 1/30 s to 1/100000 s
– Minimum Illumination:
– 0.02 lux at F2.0 (Color, 30 IRE)
– 0.002 lux at F2.0 (B/W, 30 IRE)
– 0 lux (when illuminator is on)
– Signal-to-Noise Ratio: Greater than 65 dB
– IR Distance:
– Infrared: 25 m (82.02 ft)
– Warm Light: 20 m (65.62 ft)
– IR LEDs: 2 for warm light; 2 for IR light

**Lens Details**
– Type: Fixed-focal
– Mount: M12
– Focal Lengths: 2.8 mm and 3.6 mm
– Maximum Aperture: F2.0

**Field of View**
– For 2.8 mm:
– Horizontal: 100°
– Vertical: 54°
– Diagonal: 117°
– For 3.6 mm:
– Horizontal: 80°
– Vertical: 43°
– Diagonal: 94°

**Closest Focusing Distances**
– 2.8 mm: 0.5 m (1.64 ft)
– 3.6 mm: 0.8 m (2.62 ft)

**Video Properties**
– Resolution:
– 1080p (1920 × 1080)
– 960H (960 × 576/960 × 480)
– Frame Rates:
– CVI:
– PAL: 1080p at 25 fps
– NTSC: 1080p at 30 fps
– AHD:
– PAL: 1080p at 25 fps
– NTSC: 1080p at 30 fps
– TVI:
– PAL: 1080p at 25 fps
– NTSC: 1080p at 30 fps
– CVBS: 960H for both PAL and NTSC

**Day/Night Functionality**
Modes: Auto (ICR), Color, B/W

**Backlight Compensation Modes**
Options: BLC, HLC, DWDR

**Gain Control**
Settings: Auto or Manual
**Noise Reduction**
Type: 2D NR

**Interface Details**
– Audio: Built-in Microphone
– Video: Outputs available for CVI/TVI/AHD/CVBS through a single BNC port

**Warranty**
Coverage: 1 year
