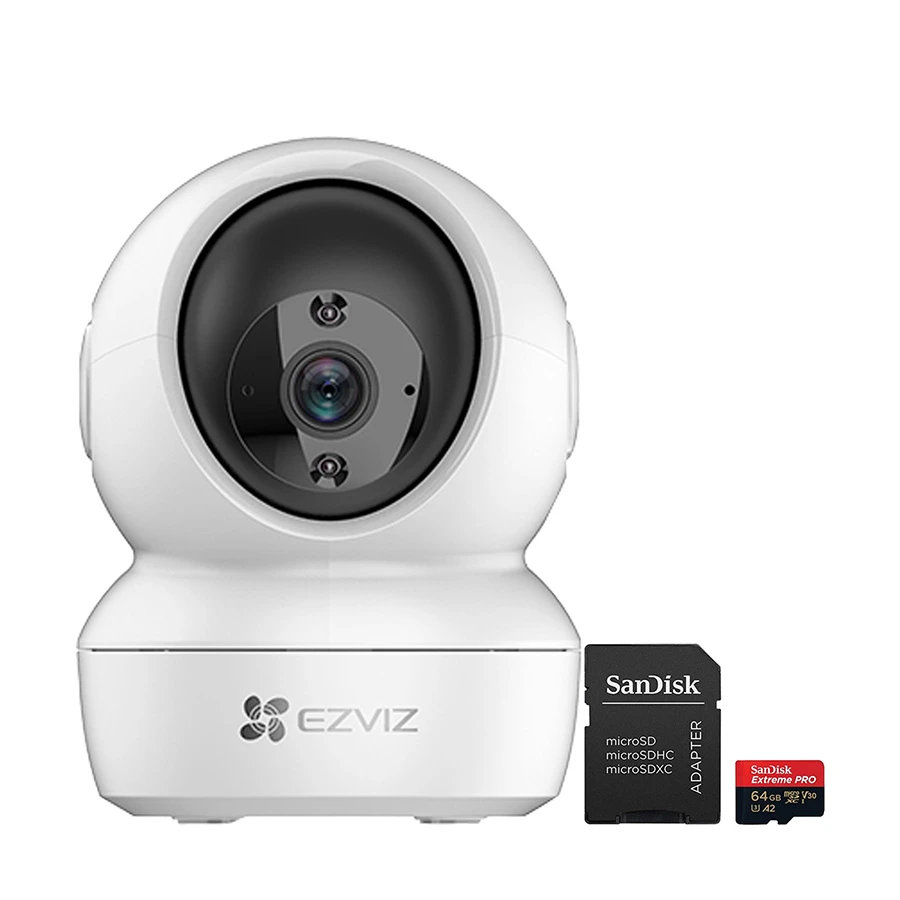

🎥 Camera Highlights (CS‑H6C – Model CS‑H6c‑R101‑1G2WF)
- Video Resolution: Full HD 1080p (2 MP), Encoded In H.264, With Adaptive Bitrate Modes: Quad HD, Full HD, HD, Standard
- Pan/Tilt Control: 360° Horizontal Pan, ~110° Vertical Tilt With Auto-Tracking
- Night Vision: Infrared Artwork Capable Up To 10 M
- Lens: 4 Mm, ~75° Horizontal, ~45° Vertical View.
- Audio: Two-Way Talk Built-In
- Storage: Supports MicroSD Up To 256 GB + Optional EZVIZ Cloud Play
- Connectivity: Wi‑Fi 2.4 Ghz (802.11 B/G/N) And Ethernet (10/100 Mbps RJ45)
- Power: 5 V DC / 1 A, Max 5 W
- Size & Weight: 119 × 88 × 88 Mm; Weighs ~218 G
- Environmental Specs: Supports 0–45 °C, Humidity ≤95% non-Condensing.
- Certifications: CE, UL, FCC, Rohs, REACH, WEEE, UKCA
🛠️ Setup Tips
-
Use your router (Wi‑Fi or Ethernet)—no router is packed in the bundle.
-
Install with included mounting hardware and connect via EZVIZ app.
-
Format or upgrade the microSD card before use.
-
Check and update firmware ASAP.
-
Enable strong password + 2FA in app settings.
-
Customize motion detection zones to reduce false alerts.
-
If desired, integrate with your Hikvision NVR or third-party viewers via ONVIF/RTSP.
